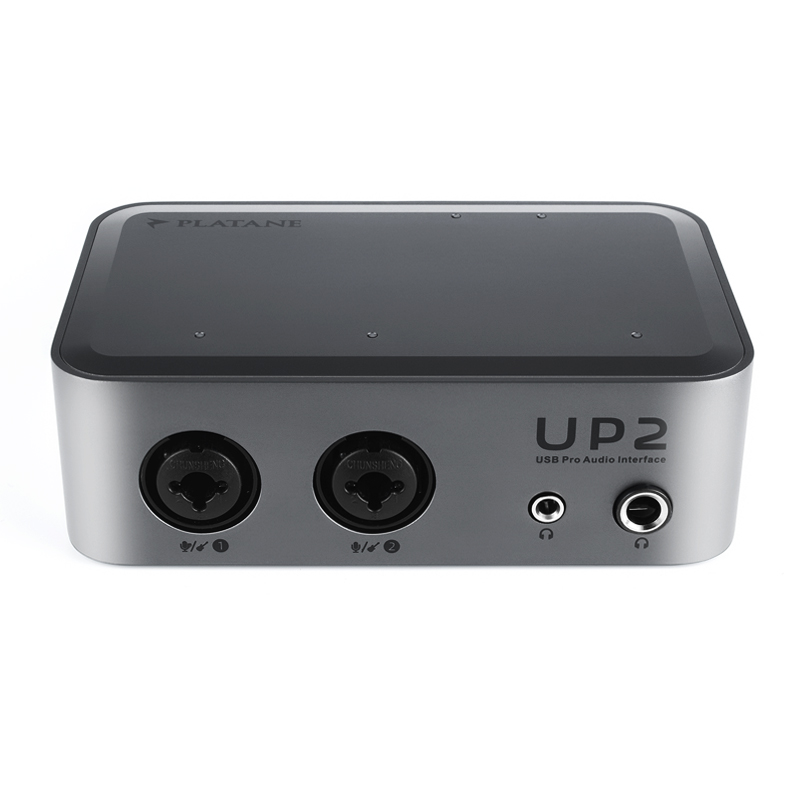

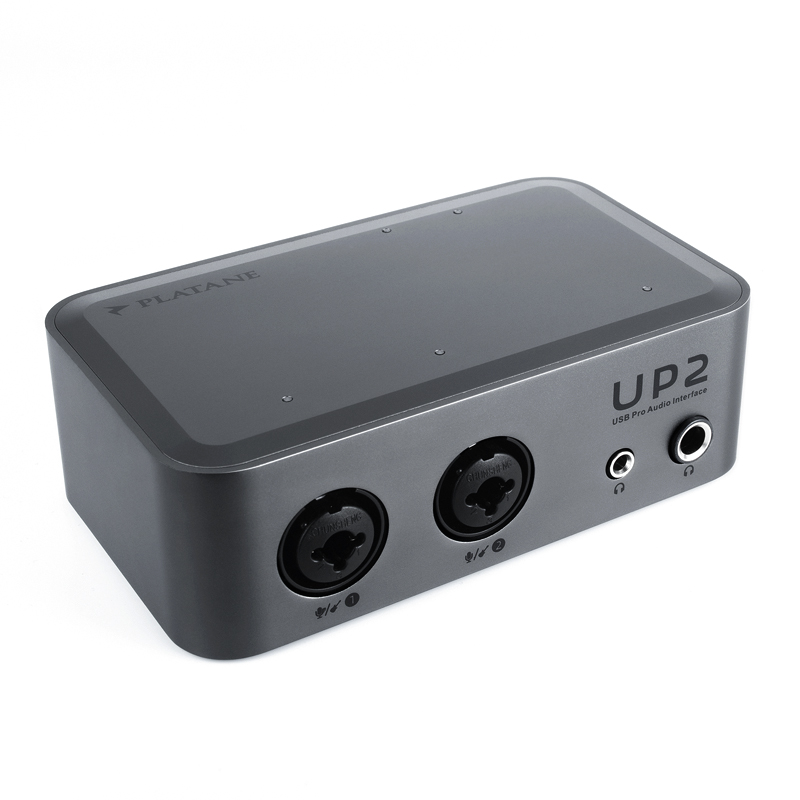

UP2 - 32Bit/192kHz PRO Audio Interface

4 In 6 Out USB&OTG Portable Pro Interface

The ultra-low THD+N brings you sound with authentic reproduction

AKM AK4493SEQ DAC chip, offering an impressive dynamic range of 123dBA Supports 32-bit/192kHz high-resolution audio, delivering professional-grade detail and fidelity Line output with 123dBA SNR, providing an ultra-clean background ideal for mixing and mastering
Flagship-Level DAC Performance – Dynamic Range That Crushes the Competition
AKM AK4493SEQ DAC chip, offering an impressive dynamic range of 123dBA Supports 32-bit/192kHz high-resolution audio, delivering professional-grade detail and fidelity Line output with 123dBA SNR, providing an ultra-clean background ideal for mixing and mastering
Massive output power of 3000mW @ 32Ω Capable of directly driving 600Ω high-impedance headphones without an external amp Ultra-low 10Ω output impedance, minimizing coloration and ensuring compatibility with a wide range of headphones
Beast-Class Headphone Output – Effortlessly Drives High-Impedance Gear
Massive output power of 3000mW @ 32Ω Capable of directly driving 600Ω high-impedance headphones without an external amp Ultra-low 10Ω output impedance, minimizing coloration and ensuring compatibility with a wide range of headphones
4-in/6-out flexible I/O configuration Direct phone connection + 4 stereo loopback channels, perfect for live streaming and multi-platform broadcasting Proprietary Mixer software for more flexible channel control beyond basic ASIO capabilities
Versatile I/O + Live Streaming Optimized Design
4-in/6-out flexible I/O configuration Direct phone connection + 4 stereo loopback channels, perfect for live streaming and multi-platform broadcasting Proprietary Mixer software for more flexible channel control beyond basic ASIO capabilities

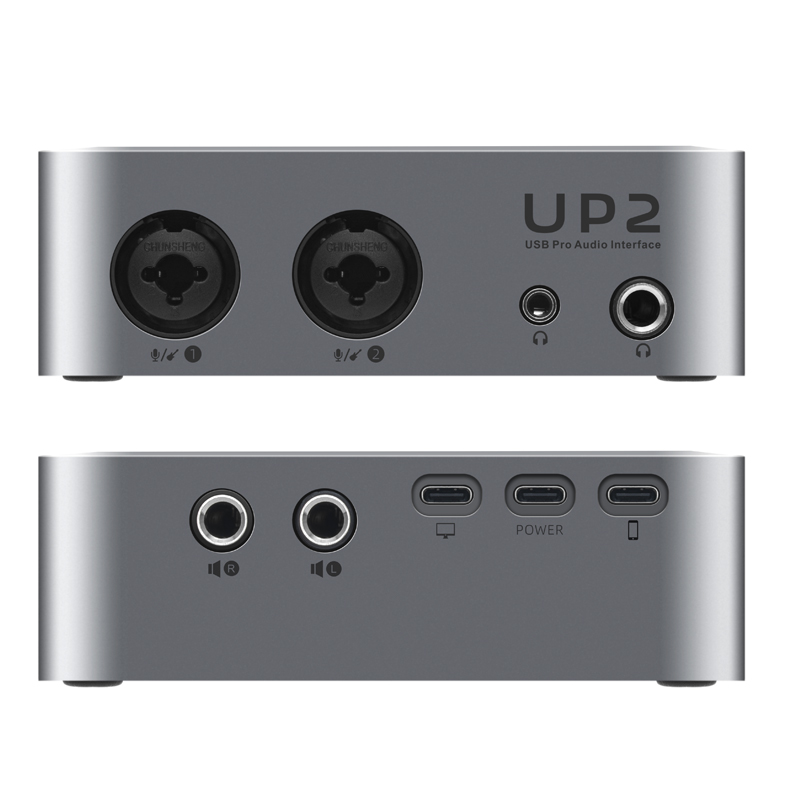

  • Professinal Audio Interface

    • Dual USB 2.0 high speed Interface
    • 2 Analog Input
    • 4 Analog Output(2 Line out & 2 Headphone)
    • 2 Usb streaming Digi in & out
    • 85dB Low-noise Mic amplifier
    • Less than 5mS Driver Loopback Latency @buffer(48) 48k
    • 16dBu High-power headphone amplifier, Max 3000mW @ 1A 5V USB Power
    • 4 pairs of virtualin WDM channels for podcast
    • Usb 2.0 Phone Port is UAC2 asynchronous protocal with feedback endpoint
    • Routing to phone usb support 32Bit/192KHz
    • Phone \Pad\Dual PC straming podcast support
    • phone usb 2.0 UAC2 auto follow computer port samplerate
    • No distortion from PC to Phone streaming audio design
    • Digitally controlled analog amplifier circuit
    • Jfet high-impedanceinstrumental input
    • Powerful Mixer for Windows
    • Mac Os control pannel suport 48V and Gain
    • Support Firmware Upgrade
    • Input channel：4
    • Output channel：6
    • Balanced output
    • ADC Chip: AK5572EN
    • Line out DAC Chip: AK4493SEQ
    • Headphone DAC Chip: ES9020Q
    • Microphone frequency response：20Hz-20KHz(±0.106dB)
    • Line out frequencyresponse：20Hz-20KHz(±0.1dB)
    • Headphone frequencyresponse：20Hz-20KHz(±0.1dB)
    • ADC dynamics range：114dBA
    • DAC dynamics range：123.6dBA
    • Mic Input THD+N：<-110dBA
    • Line Onput THD+N：<-114dBA
    • Mic Pre: PGA2500 + OPA1612
    • Line Out Buffer: OPA1612
    • Microphone amplification type：deferential amplification
    • Gain：+0dB to +85dB
    • Microphone input impedance：2.5KΩ
    • Instrumentalinput impedance：1MΩ
    • Line Out Level: +18dBu
    • Line Out impedance: 100Ω
    • Headphone amplifier Maximum current：700mA@1A 5V USB
    • Headphone amplifier Maximum Power：3000mW @1A 5V USB
    • Headphone amplifier output gain：16dBu(±6V)
    • Headphone amplifier Impedance：10Ω
    • +48V phantom power：Support
    • Driver：WDM/AudioCore/ASI0 2.3
    • Virtual channel：4 pairs of stereo
    • Mixing：Full channel matrix mixing
    • Computer USB 2.0 Port Sampling rate：44.1K 48K 88.2K 96K 176.4K 192K
    • Computer USB 2.0 Port Sampling precision：32Bit
    • Phone USB 2.0 Port Sampling rate：44.1K 48K 88.2K 96K 176.4K 192K
    • 4mS Loopback Latency @buffer(48) 48k Samplerate
    • Phone USB 2.0 Port Sampling precision：32Bit
    • MAX Machine power：2.5W
    • Size:130mmX76mmX41mm
    • Weight:210g
    • OS: Windows 10 64bit Above 1703, MAC OS Above 10.3, Linux, IOS, Andriod
    • RAM Size: ≥ 4G
    • CPU Module: Intel CORE, AMD K10

  • Platane Audio Interface Troubleshooting Guide

    Last updated: 2025/6/23

    MacOS version require 15 and above

    Platane provides dedicated drivers for both macOS and Windows systems. Please make sure to download and install the correct driver according to your operating system.

    Windows Installation Installing the driver on Windows is straightforward. Please refer to the following tutorial video for a step-by-step guide on installation and using the Mixer: https://www.youtube.com/watch?v=Cvpct12BhRE

    To install Drivers on MacOS, please follow guidence:

    1.Download the driver

    driver file

    2.Adjust Security Settings

    Go to System Settings > Privacy & Security, and set Allow apps downloaded from to App Store and identified developers.

    driver file

    3.Install the Driver

    Open the downloaded file. Follow the instructions: Drag the app into the Applications folder, then double-click it in the Applications folder to run.

    driver file

    4.Grant Permissions and Activate Driver

    Click Open when prompted.

    driver file

    Check Launch at login. Click Install Dext Driver.

    driver file

    When prompted, choose Open System Settings.

    driver file

    In System Settings, enable (activate) the Platane Driver.

    driver file

    For MacOS version below 15, please click 'allow' in system setting.

    driver file

    Once activated, the installation is complete.

    5. Connect Device

    Click the Platane icon. The driver will prompt you to connect a device.

    driver file

    Connect the UP1 audio interface — the driver will now start working.

    driver file

    6. If Installation Prompts Reappear If the install window keeps appearing, it means the driver is installed but not yet activated.

    You must activate it manually: Go to System Settings > General > Login Items > Extensions > Driver Extensions, then enable the Platane Driver.

    driver file

    driver file

    driver file

    7. Configure Input Channels

    Download and open Audio MIDI Setup (available from the App Store) to configure input channels.

    Input Channel Mapping Tips

    1–2: Microphone and headphones

    3–4: OTG

    5–6, 7–8: Loopback

Price: $199
